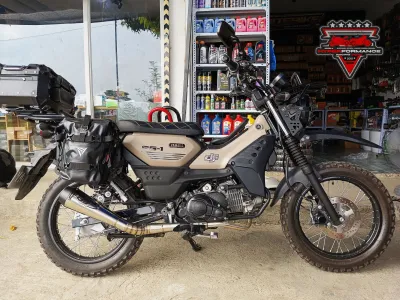

Upgrading your Yamaha PG1 with an aftermarket exhaust pipe (often referred to locally as a “pg1 pipe”) is a practical way to alter the motorcycle’s sound profile, reduce overall weight, and potentially improve exhaust gas flow. However, achieving these benefits requires a precise installation process to prevent exhaust leaks, engine damage, or legal issues on public roads. Installing an aftermarket exhaust correctly involves preparing the proper tools, safely removing the stock assembly, aligning and torquing the new system to exact specifications, and verifying the engine’s air-fuel mixture.
Because the exhaust system is a critical component that directly impacts engine performance, backpressure, and emissions, any modifications must be approached with care. Proper installation ensures that your motorcycle remains reliable and performs optimally under various riding conditions, from daily city commutes to rugged off-road trails. Following a systematic approach helps protect your investment and keeps your motorcycle operating safely.
Preparation: Tools, Safety, and Compliance Checks
Before beginning the installation, gather all the necessary tools and replacement parts to ensure a smooth workflow. You will need a metric socket set (typically including 8mm, 10mm, 12mm, and 14mm sockets), a calibrated torque wrench, quality penetrating oil, heat-resistant mechanic gloves, safety glasses, a brass wire brush, and a brand-new copper exhaust crush gasket. Never attempt to reuse the old exhaust gasket, as it deforms upon its first installation and will fail to provide a reliable seal for the new pipe.
Products mentioned in this guide
Prices are valid at publication and may change. Please refer to the product page for the latest price.
Working on an exhaust system presents distinct physical hazards that require strict safety boundaries. Always ensure that the motorcycle’s engine, cylinder head, and exhaust pipe are completely cold to the touch before loosening any fasteners. Attempting to work on a hot engine can lead to severe skin burns and significantly increases the risk of stripping the threads of the aluminum cylinder head or warping the exhaust flange. If you are uncomfortable with mechanical work, electrical components, or high-torque fasteners, seek the assistance of a qualified motorcycle technician. Always refer to your Yamaha PG1 owner’s manual and the aftermarket exhaust manufacturer’s instructions before starting.
In the Philippines, the Land Transportation Office (LTO) enforces strict regulations regarding motorcycle modifications, particularly concerning noise levels. Under standard LTO guidelines, aftermarket exhausts must not exceed a noise limit of 99 decibels (dB) when tested at a specific distance and engine RPM. Installing an excessively loud pipe can result in heavy fines, roadside apprehensions, and failed vehicle registration inspections. Additionally, modifying the exhaust system may void portions of your Yamaha PG1’s factory warranty. Always verify the local ordinances in your specific municipality, as some local government units enforce even stricter noise limits.
Removing the Stock Yamaha PG1 Exhaust Safely
To begin the removal process, park the motorcycle on a stable, level surface using the center stand to ensure it cannot tip over while you work. Remove any accessories or guards that obstruct access to the exhaust system. This includes the stock heat shields, plastic body panels near the right side of the engine, and the passenger footpeg bracket if it blocks the path of the muffler mounting bolts. Keep all removed fasteners organized in a small tray to prevent losing them.
The exhaust flange nuts at the cylinder head are highly susceptible to rust and heat cycling, especially in the humid, tropical climate of the Philippines. Spray a generous amount of penetrating oil onto the exhaust studs and nuts, allowing the oil to soak for at least 15 to 30 minutes to dissolve rust and ease removal. Using a properly fitting socket, slowly loosen the flange nuts. Apply steady, even pressure; jerky movements can easily snap the studs off inside the aluminum cylinder head, resulting in a costly and complex repair.
Once the cylinder head flange nuts are loose but not completely removed, support the weight of the muffler to prevent it from dropping suddenly. Locate the rear mounting bolts that secure the muffler assembly to the motorcycle’s frame. Carefully loosen and remove these frame bolts. Keep track of any spacers, washers, or rubber dampers, as these are critical for isolating the exhaust from chassis vibrations and must be reinstalled correctly.
Gently back off the flange nuts from the cylinder head studs completely. Carefully slide the entire stock exhaust system forward and outward, ensuring you do not scratch the engine casing, frame, or swingarm. Once the pipe is removed, look inside the exhaust port of the cylinder head to locate the old copper crush gasket. If it is stuck inside, gently pry it out using a small flathead screwdriver or a pick, taking care not to scratch the aluminum mating surface. Inspect the studs and the port for any carbon deposits, cracking, or physical damage.
Fitting and Securing the Aftermarket Pipe
Before mounting the new system, use a clean shop towel and a brass wire brush to gently clean any carbon buildup or debris from the cylinder head’s exhaust port. Ensure the mating surface is smooth and free of debris. Insert the brand-new copper crush gasket into the port, making sure it sits flat and snug. Do not use any sealant, adhesive, or silicone unless specifically recommended by the gasket manufacturer, as high exhaust temperatures will quickly destroy unauthorized sealants.
Carefully align the aftermarket header pipe with the cylinder head studs. Slide the flange over the studs, holding the pipe steady to prevent the gasket from falling out of place. Thread the flange nuts onto the studs by hand. Hand-threading is a critical safety step to ensure the nuts are not cross-threaded, which would ruin the soft aluminum threads of the cylinder head. Do not tighten them fully yet; leave them loose enough to allow the pipe to move slightly while you align the rest of the system.
Align the rear muffler bracket with the mounting points on the motorcycle frame. If your aftermarket exhaust is a multi-piece system, slide the muffler onto the header pipe first, using any supplied exhaust springs or slip-joint clamps. Align the bracket bolts with the frame holes. If the bracket does not align naturally, do not force, bend, or hammer the components. Forcing the exhaust into alignment puts immense structural stress on the system, which can lead to cracked welds or broken brackets due to engine vibrations over time. Instead, loosen the header connection slightly to allow more play, align the frame bracket, and insert the bolts by hand.
With all components loosely in place and properly aligned, begin the final tightening sequence. Use a calibrated torque wrench to tighten the cylinder head flange nuts to the manufacturer’s specified torque rating (typically found in the Yamaha service manual, usually around 15 to 20 Nm, but always verify the exact specification for your model year). Tighten the nuts in an alternating, step-by-step pattern to ensure the crush gasket compresses evenly. Once the header is secure, tighten the frame mounting bolts and any slip-joint clamps to their recommended torque values.
Leak Testing, Clearance, and Air-Fuel Tuning
Before starting the engine, wipe down the entire aftermarket exhaust pipe with rubbing alcohol and a clean microfiber cloth. Any fingerprints, grease, or oil left on the metal will burn and permanently stain the pipe once it heats up. Start the engine and let it idle. Carefully pass your hand near the cylinder head connection and any slip joints, keeping a safe distance to avoid burns. Feel for any warm air escaping and listen closely for a ticking, popping, or hissing sound, which indicates an exhaust leak. If a leak is detected, shut off the engine immediately, let it cool completely, and verify the torque on the nuts or the seating of the gasket.
With the engine running, observe the exhaust system for excessive vibration. Rev the engine slightly and check that the pipe maintains adequate clearance from the swingarm, rear tire, suspension components, and passenger footpegs. The exhaust should not contact any plastic bodywork or wiring harnesses, as the extreme heat can quickly melt these materials. Ensure there is enough room for the rear suspension to compress fully without the swingarm hitting the muffler.
Replacing the stock exhaust with a free-flowing aftermarket pipe changes the engine’s volumetric efficiency. Because the new pipe allows exhaust gases to escape more rapidly, the engine will draw in more air, which often leans out the air-fuel mixture. Symptoms of a lean condition include popping or backfiring during deceleration, hesitation during acceleration, and abnormally high engine operating temperatures. To protect your engine from long-term damage, monitor these symptoms closely. If your Yamaha PG1 exhibits these signs, consult a professional mechanic to perform carburetor rejetting or an ECU remap (depending on whether your specific model variant is carbureted or fuel-injected) to restore the optimal air-fuel ratio.
Frequently Asked Questions (FAQ)
Do I need to tune my Yamaha PG1 after installing a new exhaust?
While some slip-on mufflers can run safely on stock settings, a full aftermarket exhaust system typically increases airflow enough to lean out the air-fuel mixture. If you experience engine hesitation, excessive backfiring on deceleration, or overheating, you should consult a professional mechanic. They can adjust your carburetor jets or remap the engine control unit (ECU) to maintain engine health and performance.
Will an aftermarket exhaust make my PG1 too loud for daily commuting?
This depends entirely on the design of the aftermarket pipe you choose. Race-spec pipes without baffles are often extremely loud and will likely exceed the LTO’s 99 dB noise limit. For daily commuting in the Philippines, look for street-legal exhaust systems or pipes that include a removable baffle (dB killer). Keeping the noise level within legal limits ensures a more comfortable ride and avoids costly fines or municipal apprehensions.
